Mono/Poly Solar Panel

    Share to:

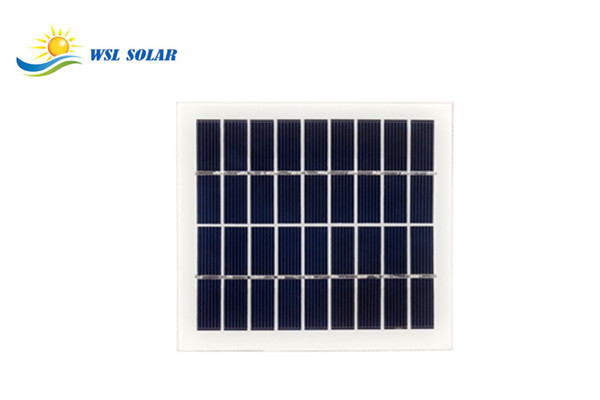

9V 1.5W Small Solar Panel

  • Features:
    - With cutting-edge high efficiency poly solar cell
    - Positive power tolerance
    - Tempered glass laminated, high transmission,durable & robust
    - Withstanding challenging environmental conditions
    - Waterproof scratch resistant & UV resistant
This 9 volt 1.5-watt small solar panel is built with high efficiency polycrystalline solar cell. It is laminated by tempered glass, which is durable and robust. This solar panel is great for charging your 6-volt DC batteries and ideal for use in off grid applications such as solar lanterns, solar chargers, GPS tracking etc.

Features:
- With cutting-edge high efficiency poly solar cell
- Positive power tolerance
- Tempered glass laminated, high transmission,durable & robust
- Withstanding challenging environmental conditions
- Waterproof, scratch resistant & UV resistant


Specification

Item No. WSL-C002
Dimension 125x135x4.5mm
Peak Power (Pmax) 1.7W
Voltage at Pmax (Vmp) 9V
Current at Pmax (Imp) 188mA
Open Circuit Voltage (Voc) 10.8V
Short Circuit Current (Isc) 206mA
Cell Type Polycrystalline Solar Cell
Power Tolerance ±5%
Encapsulation method 3.2mm Tempered glass
Back sheet TPT
Product Warranty 5 Years
Lead time 20 Days
Storage temperature -20°C ~ 65°C
Working temperature -40°C ~ 85°C
Standard Test Conditions (STC) 1000W/m2, 1.5AM, 25°C Cell temperature
