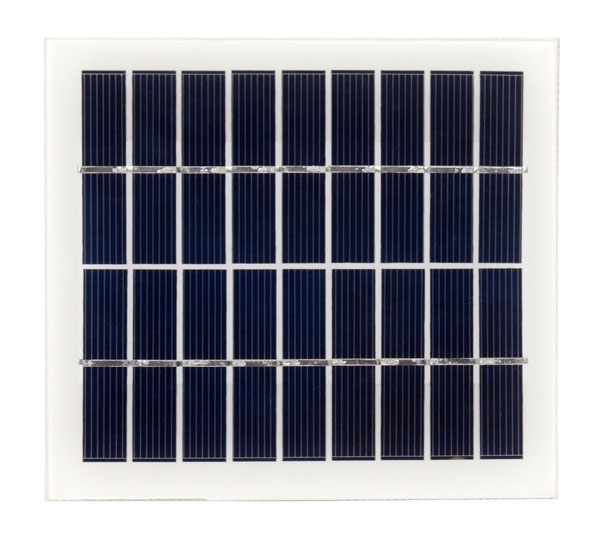

9Volt PV Panel, 9V PV Solar Panel

  • Features:
    - 9Volt PV Panel, 9V Photovoltaic panel, 9V PV Solar Panel
    - Peak Power: 1.7 Watt
    - Built with high efficient polycrystalline solar cell
    - Laminated by tempered glass
    - Size: 125x135x4.5mm
    - Suitable for GPS tracking, educational kit, small electronics devices, LED lighting etc.
This 9 volt 1.7-watt solar panel is built with high efficiency polycrystalline solar cell. It is laminated by tempered glass, which is durable and robust. This solar panel is great for charging your 6-volt DC batteries and ideal for use in off grid applications such as solar lanterns, solar chargers, GPS tracking etc.

Features:
- With cutting-edge high efficiency poly solar cell
- Positive power tolerance
- Tempered glass laminated, high transmission,durable & robust
- Withstanding challenging environmental conditions
- Waterproof, scratch resistant & UV resistant


Specification

Item No. WSL-C002
Dimension 125x135x4.5mm
Peak Power (Pmax) 1.7W
Voltage at Pmax (Vmp) 9V
Current at Pmax (Imp) 188mA
Open Circuit Voltage (Voc) 10.8V
Short Circuit Current (Isc) 206mA
Cell Type Polycrystalline Solar Cell
Power Tolerance ±5%
Encapsulation method 3.2mm Tempered glass
Back sheet TPT
Product Warranty 5 Years
Lead time 20 Days
Storage temperature -20°C ~ 65°C
Working temperature -40°C ~ 85°C
Standard Test Conditions (STC) 1000W/m2, 1.5AM, 25°C Cell temperature
