Mono/Poly Solar Panel

    Share to:

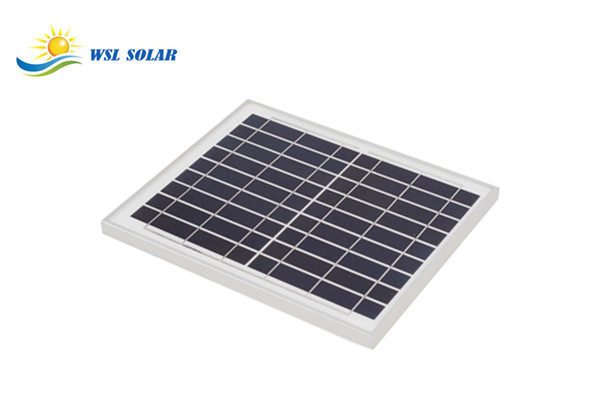

9V 11W Poly Solar Panel

  • Features:
    - With cutting-edge high efficiency poly solar cell
    - Positive power tolerance
    - Tempered glass laminated high transmissiondurable & robust
    - Withstanding challenging environmental conditions
    - Waterproof scratch resistant & UV resistant
    - Excellent performance under low light environments
This 9 volt 11-watt solar panel is built with the latest most efficient polycrystalline solar cell. It is laminated by tempered glass, which is durable and robust. This solar panel is great for charging your 6-volt DC batteries and ideal for use in off grid applications such as solar traffic signs and lights.

Features:
- With cutting-edge high efficiency poly solar cell
- Positive power tolerance
- Tempered glass laminated, high transmission,durable & robust
- Withstanding challenging environmental conditions
- Waterproof, scratch resistant & UV resistant
- Excellent performance under low light environments


Specification

Item No. WSL-C012
Dimension 350x300x18mm
Peak Power (Pmax) 11W
Voltage at Pmax (Vmp) 9V
Current at Pmax (Imp) 1.2A
Open Circuit Voltage (Voc) 10.8V
Short Circuit Current (Isc) 1.3A
Cell Type Polycrystalline Solar Cell
Power Tolerance ±5%
Encapsulation method 3.2mm Tempered glass
Back sheet TPT
Product Warranty 5 Years
Lead time 20 Days
Storage temperature -20°C ~ 65°C
Working temperature -40°C ~ 85°C
Standard Test Conditions (STC) 1000W/m2, 1.5AM, 25°C Cell temperature
