Mono/Poly Solar Panel

    Share to:

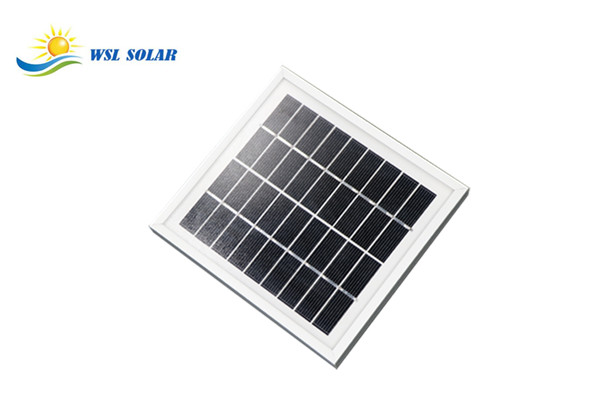

2 Watt 9 Volt Solar Panel

  • Features:
    - WSL Solar's 2 Watt 9 Volt solar panel adopts
      the latest PERC monocrystalline solar cell,
      >21% efficiency.
    - Dimension 130x140x17mm
    - Laminated by tempered glass, durable & robust
    - Ideal for use in solar powered LED lighting, IoT solar,
    solar traffic sign and small solar powered systems etc.
WSL Solar’s 9 Volt 2 Watt solar panel is built with the latest PERC monocrystalline solar cell. It is laminated by tempered glass, which is durable and robust. This solar panel is ideal for use in off grid applications such as solar powered LED lighting, IoT solar, solar traffic sign, small solar powered system etc.

Features:
- With latest high efficiency PERC monocrystalline solar cell
- Positive power tolerance
- Tempered glass laminated, high transmission, durable & robust
- Withstanding challenging environmental conditions
- Waterproof, scratch resistant & UV resistant
- Excellent performance under low light environments


                                                                    Specification

Item No. WSL-C022
Dimension 130x140x17mm
Peak Power (Pmax) 1.8W
Voltage at Pmax (Vmp) 9V
Current at Pmax (Imp) 200mA
Open Circuit Voltage (Voc) 10.8V
Short Circuit Current (Isc) 220mA
Cell Type PERC Monocrystalline Solar Cell
Power Tolerance ±5%
Encapsulation method 3.2mm Tempered glass
Back sheet TPT
Product Warranty 5 Years
Lead time 25 Days
Storage temperature -20°C ~ 65°C
Working temperature -40°C ~ 85°C
Standard Test Conditions (STC) 1000W/m2, 1.5AM, 25°C Cell temperature
