Mono/Poly Solar Panel

    Share to:

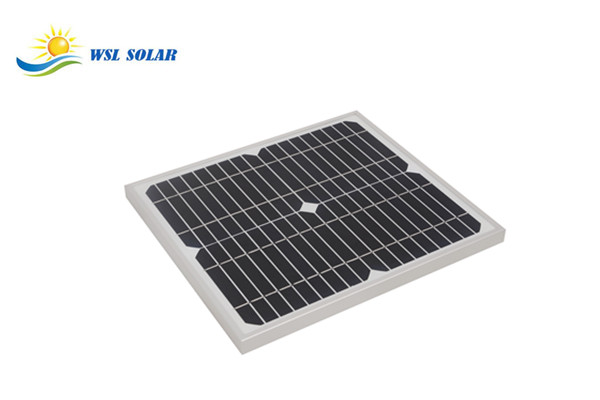

18V 10W Solar Panel

  • Features:
    - With cutting-edge high efficiency mono solar cell
    - Positive power tolerance
    - Tempered glass laminated, high transmission,durable & robust
    - Withstanding challenging environmental conditions
    - Waterproof, scratch resistant & UV resistant
This 18V 10W solar panel is built with the latest most efficient monocrystalline solar cell. It is laminated by tempered glass, which is durable and robust. This solar panel is great for charging your 12-volt DC batteries and ideal for use in off grid applications such solar traffic signs and lights, security camera, ventilation fans etc .

Features:
- With cutting-edge high efficiency mono solar cell
- Positive power tolerance
- Tempered glass laminated, high transmission,durable & robust
- Withstanding challenging environmental conditions
- Waterproof, scratch resistant & UV resistant


Specification

Item No. WSL-C009
Dimension 305x275x17mm
Peak Power (Pmax) 10W
Voltage at Pmax (Vmp) 18V
Current at Pmax (Imp) 556mA
Open Circuit Voltage (Voc) 21.6V
Short Circuit Current (Isc) 612mA
Cell Type Monocrystalline Solar Cell
Power Tolerance ±5%
Encapsulation method 3.2mm Tempered glass
Back sheet TPT
Product Warranty 5 Years
Lead time 20 Days
Storage temperature -20°C ~ 65°C
Working temperature -40°C ~ 85°C
Standard Test Conditions (STC) 1000W/m2, 1.5AM, 25°C Cell temperature
