Mono/Poly Solar Panel

    Share to:

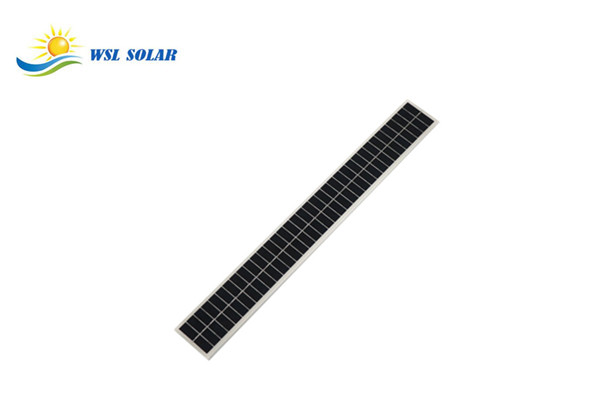

15V 4W Long Strip Solar Panel

  • Features:
    - WSL Solar's 15V 4W Long Strip Solar Panel adopts
      high efficiency monocrystalline solar cell.
    - Dimension 63x462x5mm
    - Laminated by tempered glass, durable & robust
    - Ideal for use in solar blind or automatic shutter etc.
WSL Solar’s 15V 4W long strip solar panel (or PV panel) is built with the high efficiency monocrystalline solar cell. It is laminated by tempered glass, which is durable and robust. This solar panel is ideal for use in off grid applications such as solar powered LED lighting, solar blind or automatic shutter, small solar powered system etc.

Features:
- With high efficiency monocrystalline solar cell
- Positive power tolerance
- Tempered glass laminated, high transmission, durable & robust
- Withstanding challenging environmental conditions
- Waterproof, scratch resistant & UV resistant
- Excellent performance under low light environments

Specification
Item No. WSL-C019
Dimension 63x462x5mm
Peak Power (Pmax) 4W
Voltage at Pmax (Vmp) 15V
Current at Pmax (Imp) 0.26A
Open Circuit Voltage (Voc) 18V
Short Circuit Current (Isc) 0.28A
Cell Type  Monocrystalline Solar Cell
Power Tolerance ±5%
Encapsulation method 3.2mm Tempered glass
Back sheet TPT
Product Warranty 5 Years
Lead time 25 Days
Storage temperature -20°C ~ 65°C
Working temperature -40°C ~ 85°C
Standard Test Conditions (STC) 1000W/m2, 1.5AM, 25°C Cell temperature
